Payment Link Sandbox

1. Introduction

The Payment Link Sandbox is a testing environment designed to allow developers to simulate payment link transactions without processing real money. This system enables testing of payment link creation, simulated payment flow, and real-time transaction status tracking to ensure that the integration functions correctly before going live.

1.1 What is the Payment Link Sandbox?

The Payment Link Sandbox is a payment using the Payment Link Sandbox through the Bank Platform, it is necessary to generate a link that redirects the user to their bank's Mobile Banking App to complete the payment. Currently, the system supports connections with four major banks in Laos, including:

Short Name	Bank Name
BCEL	Banque pour le Commerce Extérieur Lao
JDB	Joint Development Bank
LDB	Lao Development Bank
IB	Indochina Bank

The process to connect and retrieve a Payment Link sandbox is follow :

Parameter	Value
URL	https://payment-gateway.lailaolab.com/v1/api/test/payment/ge-payment-link (opens in a new tab)
Method	POST
Authentication	Basic Auth

Example:

nodejs

export async function POST(request) {
try {
  const { amount, description } = await request.json();
  const key =
    process.env.SECRET_KEY ||
    "Secret Key";

  const data = JSON.stringify({
    amount: amount || 1,
    description: description || "Example Description",
  });

  const config = {
    method: "post",
    maxBodyLength: Infinity,
    url: "https://payment-gateway.lailaolab.com/v1/api/test/payment/get-payment-link",
    headers: {
      Authorization: `Basic ${Buffer.from(key).toString("base64")}`,
      "Content-Type": "application/json",
    },
    data: data,
  };

  const response = await axios.request(config);
  console.log("data", response.data);

  // console.log("res" , response);
  return NextResponse.json(response.data);
} catch (error) {
  console.error("Payment generation error:", error);
  return NextResponse.json(
    { message: "Payment generation failed", error: error.message },
    { status: 500 }
  );
}
}

Not :refers to your Secret Key, which is used to authorize API requests. You can find your Secret Key on the Home page of the PhaJay Portal after logging in.

1.2 Request Body

When creating a Payment Link Sandbox , send a POST request with the following JSON payload:

Field	Type	Description
amount	Number	The amount of transaction
description	String	A description of the transaction or purpose
tag1	string	The first custom field of platform (option)
tag2	string	The second custom field of platform (option)

tag1, tag2 can be used to pass custom metadata such as order ID, user ID, or tracking references. These values will be returned in webhook callbacks, making it easier to match transactions with your internal system.

Example:

application/json

{
  "amount": 50000,
  "description":"Sandbox test",
  "tag1": "AppZap Shop",
  "tag2": "666bbb461732a2e46233fdf9",
  }

1.3 Response Data

Field	Type	Description
message	String	A string indicating the outcome of the API call
redirectURL	String	Payment link page URL using for the payment process

Example:

application/json

  {
     "message": "SUCCESS",
     "redirectURL" :"https://payment-link-sandbox.netlify.app?amount=5000&linkCode=4MNBOBGS2MZB"
  }

1.4 Redirect to Payment Link SandBox

In this step, the user will be redirected to a secure payment link sandbox page to select bank and complete the payment process

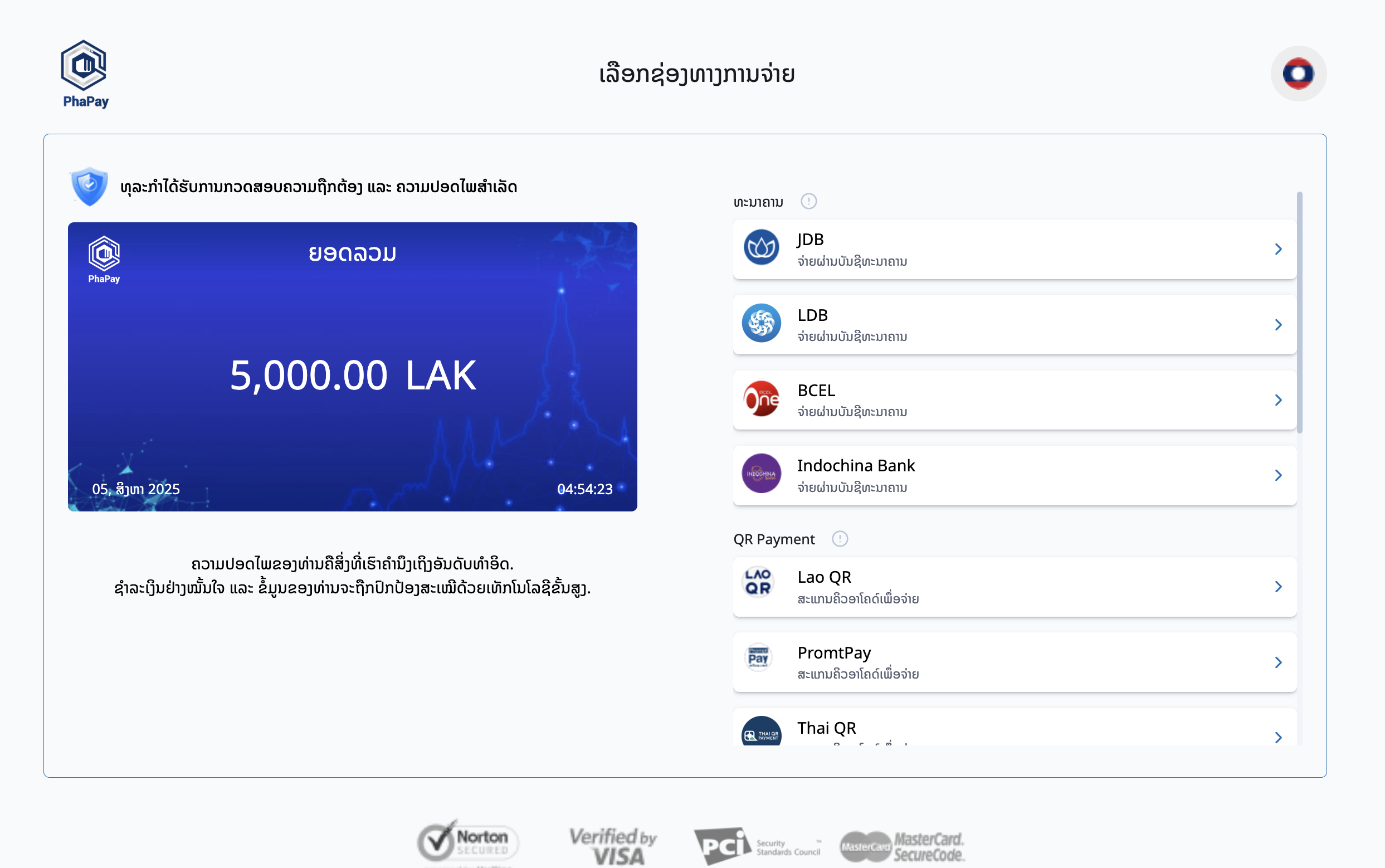

Set1 : It redirects to payment link sandbox for bank selection

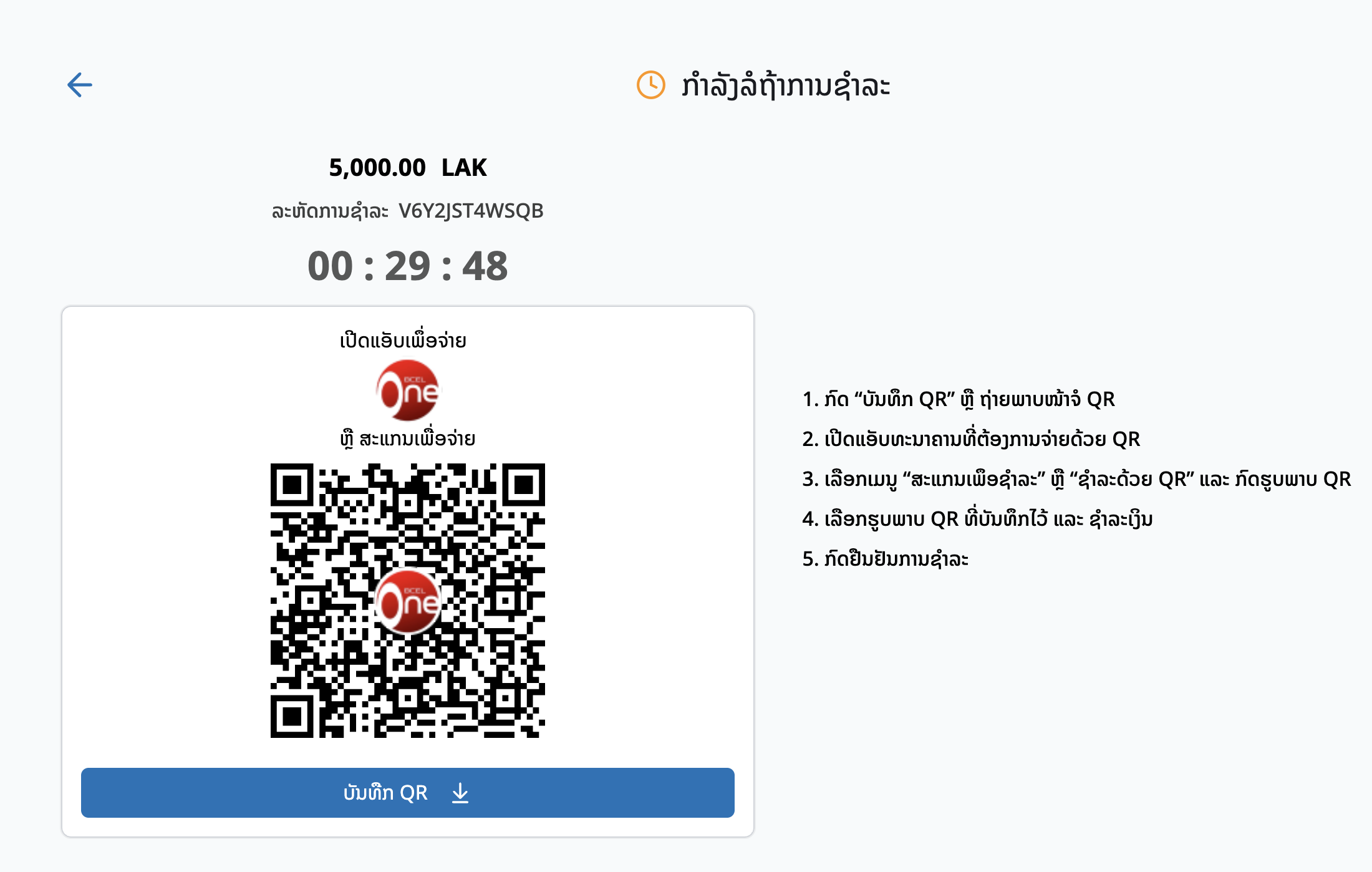

Set2 : When the user selects their bank, they will be automatically redirected to the QR code page for payment in this page user can open PhayJay App to Scan QR for payment

Not :PhayJap App is a testing application developed by PhaJay to help you simulate transactions without using real money. You can use this app to scan QR codes generated in the sandbox environment for testing purposes.

The app is available for download on your mobile device via the following link:

Download PhayJap App

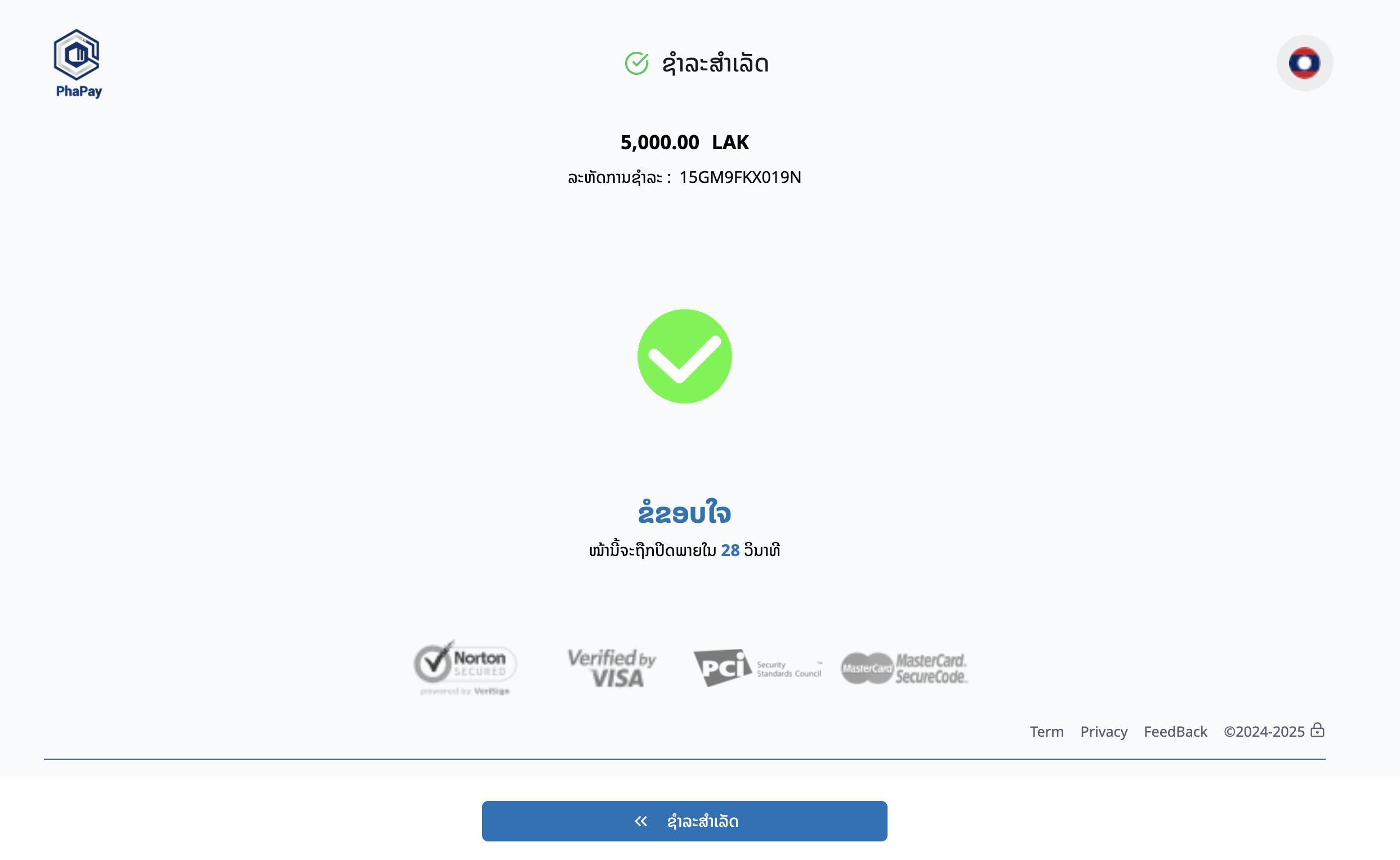

Set3 : After scanning and completing the payment, the system will display a message for 5 seconds Then, it will automatically redirect the user to their success callback URL

2. Webhook Callback Data

When the transaction is complete it will return callback data to the user's webhook This data is sent as part of the HTTPS request (usually a POST) from the service to your designated webhook URL.

Response Data

Field	Type	Description
message	String	Status message of the response
_id	String	A string containing the QR code data
linkCode	String	Unique identifier for the payment document.
amount	number	The account number initiating the transaction
currency	String	Currency code (e.g., LAK)
descriptione	String	A description of the transaction or purpose
status	String	Payment status(e.g.,PAYMENT_COMPLETED)
user	String	ID of the user in the PhaJay system
tag1 to tag6	String	An optional custom tag field for internal use
isMerchantIdPayment	Boolean	Indicates if the payment was made via merchant ID
isAffiliatePayment	Boolean	Indicates if the payment was made via an affiliate
createdAt	String (ISO Date)	Date and time when the payment was created
updateAt	String (ISO Date)	Date and time when the payment was updateAt
origin	String	The method of payment (e.g., BCEL, JDB, LDB, IB)
transactionId	String	Unique transaction identifier
qrCode	String	QR code data string for scanning and paying
closedBy	String	Indicates who closed the transaction (e.g., CUSTOMER)
paymentData	String	Detailed metadata about the payment in stringified JSON
paymentTime	String (ISO Date)	Actual time of payment transaction

Read More:

Explore the full Payment Link Sandbox documentation for detailed integration guidelines .

Click here to access:

Payment Link Sandbox Documentation (PDF)
