Payment Link

1. Payment Link Integration Flow – Customer Platform

This flow describes how a customer-facing platform (e.g., e-commerce site, mobile app, or SaaS product) can integrate with the Payment Link service to facilitate seamless online payments via local banks or other supported payment channels. (who connect with Payment Link)

2. Configure Redirect URLs and Webhook

First of all,it required configuring the Success URL , cancel URL,and Webhook in the PhayJay Portal

Step 1:

Configure Redirect URLs

Login to the portal system (portal.phapay.com)
Navigate to Setings > Callback URL Setting

Fill in the following fields:

Type	Description
Success URL	The URL where users are redirected after a successful payment (e.g., your platform’s thank-you page).
Cancel URL	The URL where users are redirected if they cancel the payment.

Step 2:

config Webhook API

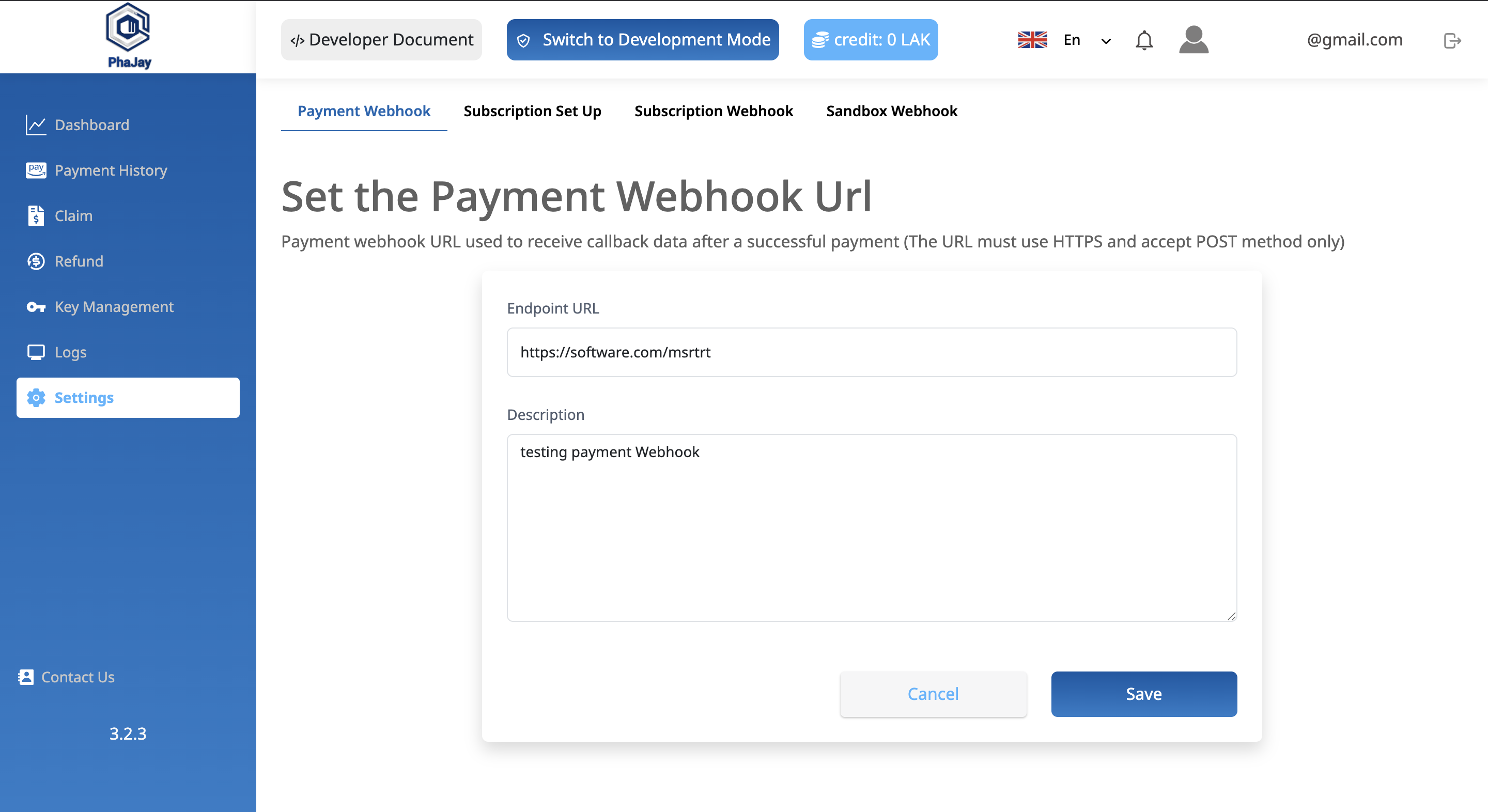

To receive payment status updates from PhaPay, you need to configure the Webhook URL.

Navigate to:
Settings > Webhook Setting
In the form, fill in the following fields:

Field	Description
Endpoint	The publicly accessible URL on your server where you want to receive payment notifications (e.g., https://yourdomain.com/api/payment/webhook (opens in a new tab)).
Description (optional)	Add a short description to identify the purpose of this Webhook, such as Production Order Payment Webhook.

3. Get Payment Link

To make a payment with Payment Link through the Bank Platform, it is necessary to create a Link for connecting the bank to use the Mobile Banking App to make the connection. Currently, we can connected to 4 banks in laos such as :

Short Name	Bank Name
BCEL	Banque pour le Commerce Extérieur Lao
JDB	Joint Development Bank
LDB	Lao Development Bank
IB	Indochina Bank

The process to connect and retrieve a Payment Link is as follows:

Parameter	Value
URL	`https://payment-gateway.lailaolab.com/v1/api/link/payment-link`
Method	`POST`
Authentication	`Basic Auth`

Example:

application/json

      {
      "Content-Type": "application/json",
      Authorization:`Basic ${Buffer.from(`${KEY}`).toString("base64")}`
     }

Note: KEY refers to your Secret Key, which is used to authorize API requests. You can find your Secret Key on the Home page of the PhaPay Portal after logging in.

3.1 Request Body

When creating a Payment Link, send a POST request with the following JSON payload: :

Field	Type	Required	Description
orderNo	String	No	(New Update)We recommend you use this field and it must be unique
amount	Number	Yes	The amount to be paid for the transaction.
description	String	Yes	payment description's purpose
tag1	String	No	Custom field #1 for your internal reference.
tag2	String	No	Custom field #2 for your internal reference.
tag3	String	No	Custom field #3 for your internal reference.

💡 Tip for Developers: tag1, tag2, and tag3 can be used to pass metadata such as order ID, user ID, or tracking references — they will be returned in webhook callbacks.

Example:

application/json

{
  orderNo: "ORDER1757665596722" // orderNo
  amount: 1
  description: "Buy a product"
  tag1: "6868a691f914536d6d731e2b" // shopId
  tag2: "BB SHOP"                  // shopName
  }

3.2 Response Data

Field	Type	Description
message	String	A message indicating the result of the API call (e.g., "SUCCESSFULLY" or error info).
redirectURL	String	The generated Payment Link URL. Redirect the customer to this URL to complete the payment process.

Example:

application/json

{
  "message": "SUCCESSFULLY",
  "redirectURL": "https://payment-link.lailaolab.com?amount=1&linkCode=bd631c81-5243-4711-9bf9-8630f2103e77",
   "orderNo": "ORDER1757665857427"
}

3.3 Redirect to Payment Link

Once the Payment Link is successfully generated, your application should redirect the user to the provided secure payment page.

Step 1:

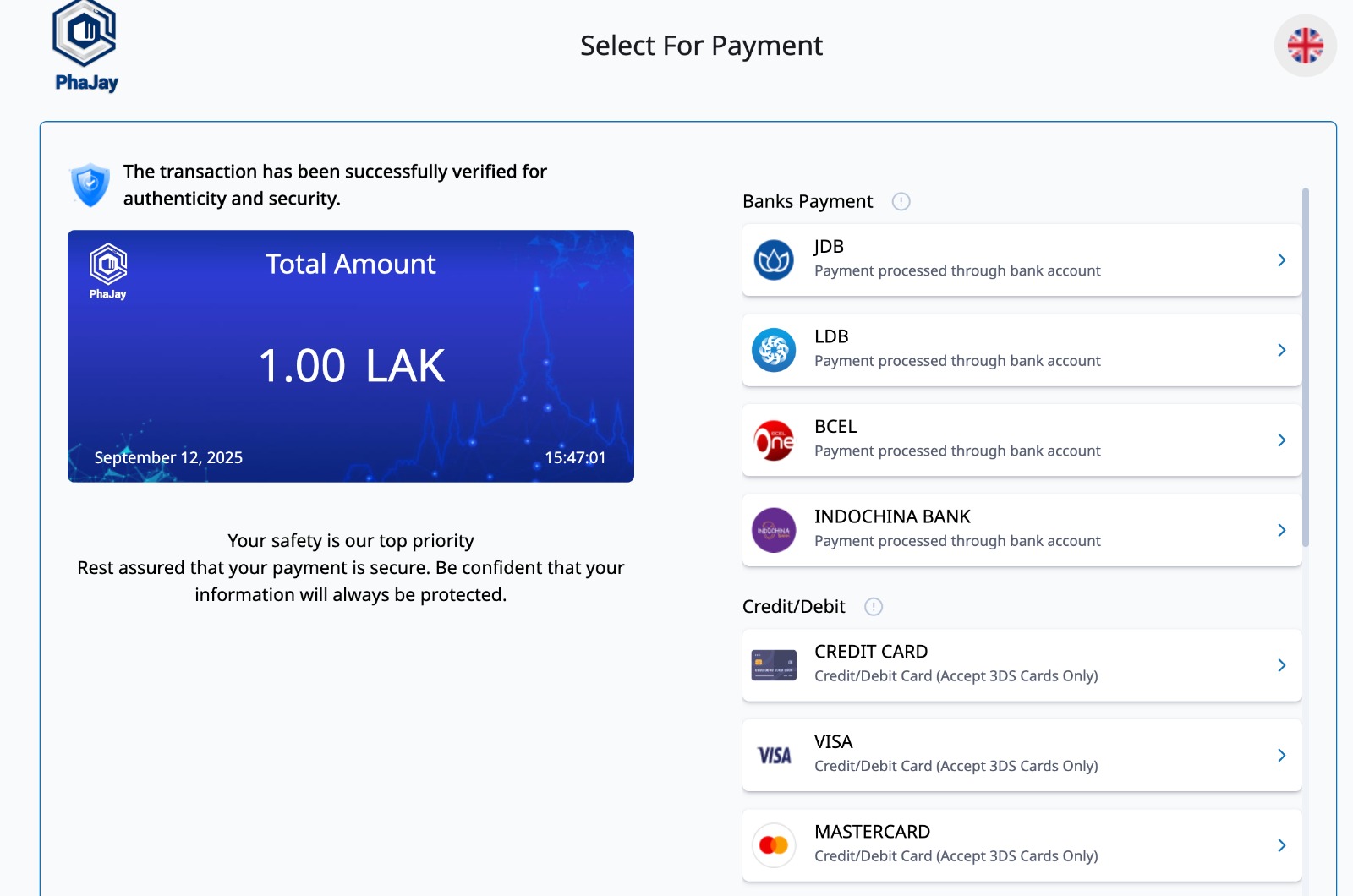

After receiving the redirect link, open it to navigate to the payment page.

Step 2:
When the user selects their bank, they will be automatically redirected to the QR code page.
On this page, the user can either:

Open their bank app via App Link, or
Scan the QR code to complete the payment.

Step 3:

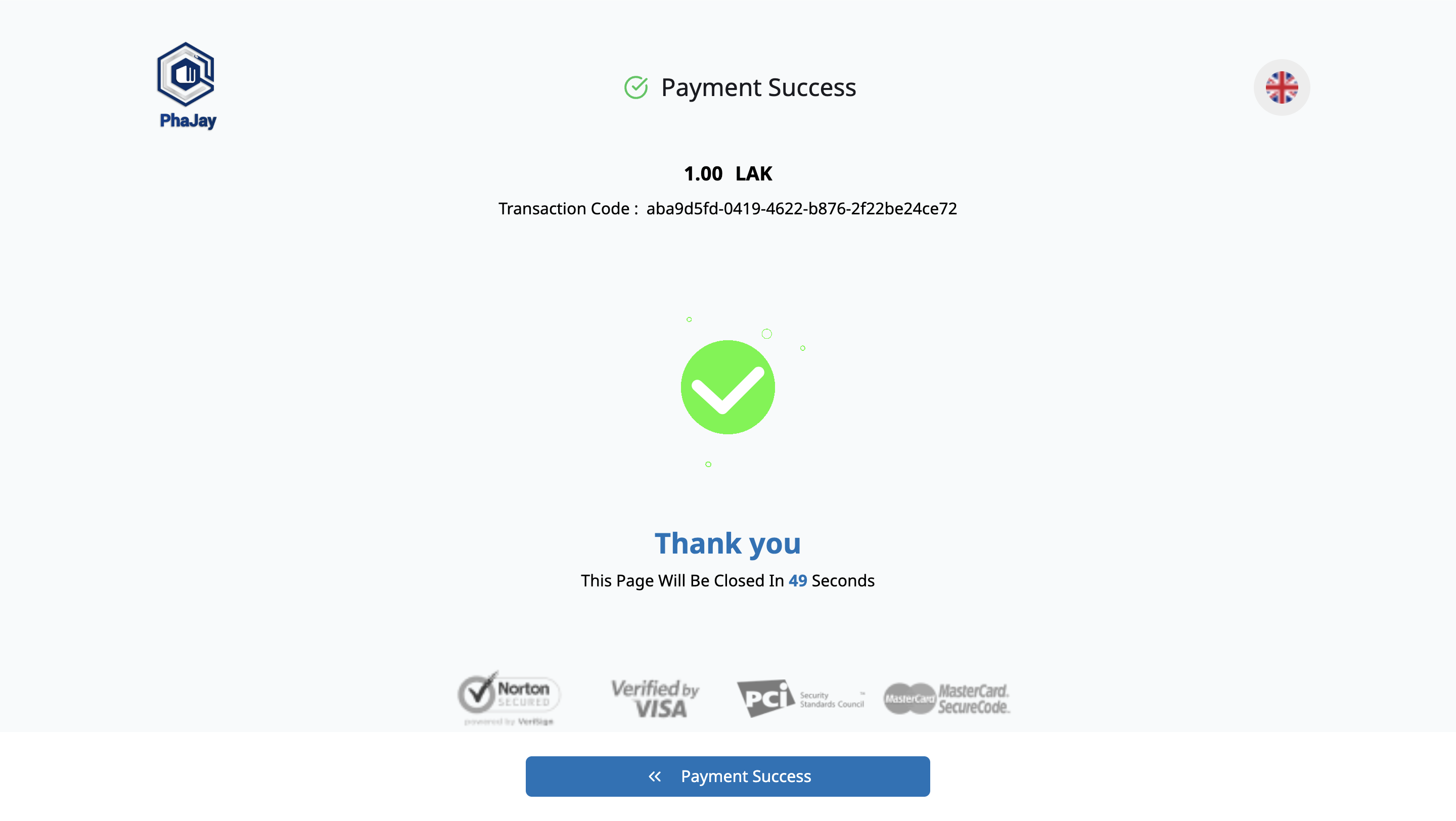

After scanning and completing the payment, the system will display a confirmation message for 60 seconds (the user can skip this step by clicking).
Then, it will automatically redirect the user to their success callback URL.

Example Redirect URL

application/json

{
  Your_website_success_URL?linkCode=1d180ad6-efca-49c5-be71-80b2e2095414&amount=1&description=Buy%20a%20product&orderNo=ORDER1757666411760
}

URL Parameters Breakdown

Parameter	Example Value	Description
linkCode	1d180ad6-efca-49c5-be71-80b2e2095414	Unique payment link identifier
amount	1	Payment amount
description	Buy a product	URL-encoded payment description
orderNo	ORDER1757666411760	Platform's orderNo / transaction ID

3.4 Webhook Callback Data

Once the transaction is complete, PhaJay will send callback data to the designated webhook URL provided during the configuration. This data is sent as part of an HTTPS request (typically a POST) to your webhook URL.

Webhook Response Data

Field	Type	Description
message	String	Status message of the transaction response.
refNo	Number	Reference number for the transaction.
billNumber	String	Unique identifier for the bill.
txnDateTime	String (Date)	Date and time of the payment.
txnAmount	Number	Transaction amount.
sourceCurrency	String	Currency of the transaction source.
sourceAccount	String	Account number of the source.
merchantName	String	Name of the merchant involved in the transaction.
sourceName	String	Name of the person or entity initiating the transaction.
description	String	Description or purpose of the transaction.
exReferenceNo	String	External reference number for the transaction.
userId	String	User identifier in the PhaJay system.
linkCode	String	User Unique payment link identifier
transactionId	String	Unique identifier for the transaction.
status	String	Current status of the transaction.
paymentMethod	String	Payment method used (e.g., BCEL, JDB, ...).
orderNo	String	Platform's order number.
successURL	String (URL)	Success callback URL.
tag1	String	Additional tag or note related to the transaction.
tag2	String	Additional tag or note related to the transaction.
tag3	String	Additional tag or note related to the transaction.
tag4	String	Additional tag or note related to the transaction.
tag5	String	Additional tag or note related to the transaction.
tag6	String	Additional tag or note related to the transaction.

Exmaple Response data

application/json

{
"message": "SUCCESS",
"refNo": "001LNMI395488650608",
"exReferenceNo": "BONEPBNOAIWN6AFO",
"merchantName": "PhaJay Payment",
"memo": "LMPS QR PAYMENT|LNMI|BCEL|1600120000000006170001|LAK|PhaJay Payment|ZAzprpRJomfSW0dofOUC0GwcI|PAYMENT|15:59:50",
"txnDateTime": "2025-09-12 15:59:50",
"txnAmount": 1,
"billNumber": "ZAzprpRJomfSW0dofOUC0GwcI",
"sourceAccount": "138880037",
"sourceName": "JDB Yes for Domistrict Bank LAP NET ",
"sourceCurrency": "LAK",
"paymentId": "68c3dc6c464ee95aafeb9319",
"linkCode": "1d180ad6-efca-49c5-be71-80b2e2095414",
"transactionId": "1d180ad6-efca-49c5-be71-80b2e2095414",
"paymentMethod": "JDB",
"status": "PAYMENT_COMPLETED",
"description": "Buy a product",
"remark": "",
"tag1": "6868a691f914536d6d731e63",
"tag2": "BB SHOP",
"tag3": "",
"tag4": "",
"tag5": "",
"tag6": "",
"userId": "66923e41ea9468588820b046",
"orderNo": "ORDER1757666411760",
"successURL": "http://localhost:5174/payment/success?linkCode=1d180ad6-efca-49c5-be71-80b2e2095414&amount=1&description=Buy a product&orderNo=ORDER1757666411760"
}

⚠️ Note:
Each bank may return different response fields.
However, the following system-standard fields are always guaranteed:

paymentMethod → The bank/payment method used (e.g., BCEL, JDB,LDB).
linkCode → User Unique payment link identifier generated by the system.
transactionId → Unique transaction identifier generated by the system.
orderNo → Platform's order number associated with the transaction.
txnAmount → The paid amount.

All other fields may vary by bank and should be handled accordingly.
